#30DayChartChallenge 2022-04-05: Slopes

Visualising the aspect ratios of the contiguous US states as slopes in a geo-faceted chart.
R
dataviz
30DayChartChallenge
GIS
Published

April 7, 2022

Today’s prompt is Slopes. My idea: each US state has a geographic aspect ratio (width ÷ height). I’ll represent that ratio as a slope — tilted right for wide states, horizontal for square ones, tilted left for tall states — and lay them out in a geo-faceted grid.

Computing state aspect ratios

us_states_sf <- states() |>
  clean_names()

get_state_aspect_ratio <- function(state_names) {
  map_dbl(state_names, ~ {
    bbox <- us_states_sf |>
      filter(name == .x) |>
      st_bbox() |>
      as.list()
    (bbox$xmax - bbox$xmin) / (bbox$ymax - bbox$ymin)
  })
}

us_states_aspect_ratios <- us_states_sf |>
  mutate(aspect_ratio = get_state_aspect_ratio(name)) |>
  st_drop_geometry() |>
  select(name, aspect_ratio) |>
  as_tibble()

Main geo-faceted chart

Each panel shows a line whose slope encodes the state’s aspect ratio: slope = 1 (wide), slope = 0 (square), slope = -1 (tall).

gg_us_slopes_geo_faceted <- us_states_aspect_ratios |>
  filter(!name %in% c("Hawaii", "Alaska")) |>
  ggplot() +
  geom_abline(aes(
    intercept = case_when(
      aspect_ratio > 1.2 ~ 0,
      aspect_ratio > 0.8 ~ 0.5,
      aspect_ratio < 0.8 ~ 1
    ),
    slope = case_when(
      aspect_ratio > 1.2 ~ 1,
      aspect_ratio > 0.8 ~ 0,
      aspect_ratio < 0.8 ~ -1
    )
  )) +
  facet_geo(~name, grid = us_state_contiguous_grid1) +
  theme_minimal() +
  theme(strip.text = element_text(color = "white"))
Some values in the specified facet_geo column 'name' do not match the
  'name' column of the specified grid and will be removed: United
  States Virgin Islands, Commonwealth of the Northern Mariana Islands,
  Guam, American Samoa, Puerto Rico

Legend panel

gg_legend_slopes <- tribble(
  ~slope_label,           ~intercept, ~slope,
  "w > h<br>Ratio > 1.2",  0,          1,
  "w ~ h<br>Ratio 0.8 - 1.2", 0.5,     0,
  "w < h<br>Ratio < 1.2",  1,         -1
) |>
  mutate(slope_label = fct_reorder(slope_label, slope)) |>
  ggplot() +
  geom_abline(aes(intercept = intercept, slope = slope)) +
  facet_grid(slope_label ~ ., switch = "y") +
  coord_fixed() +
  theme_ipsum_rc() +
  theme(strip.text.y.left = element_markdown(angle = 0, hjust = 0.5, family = "Arvo"))

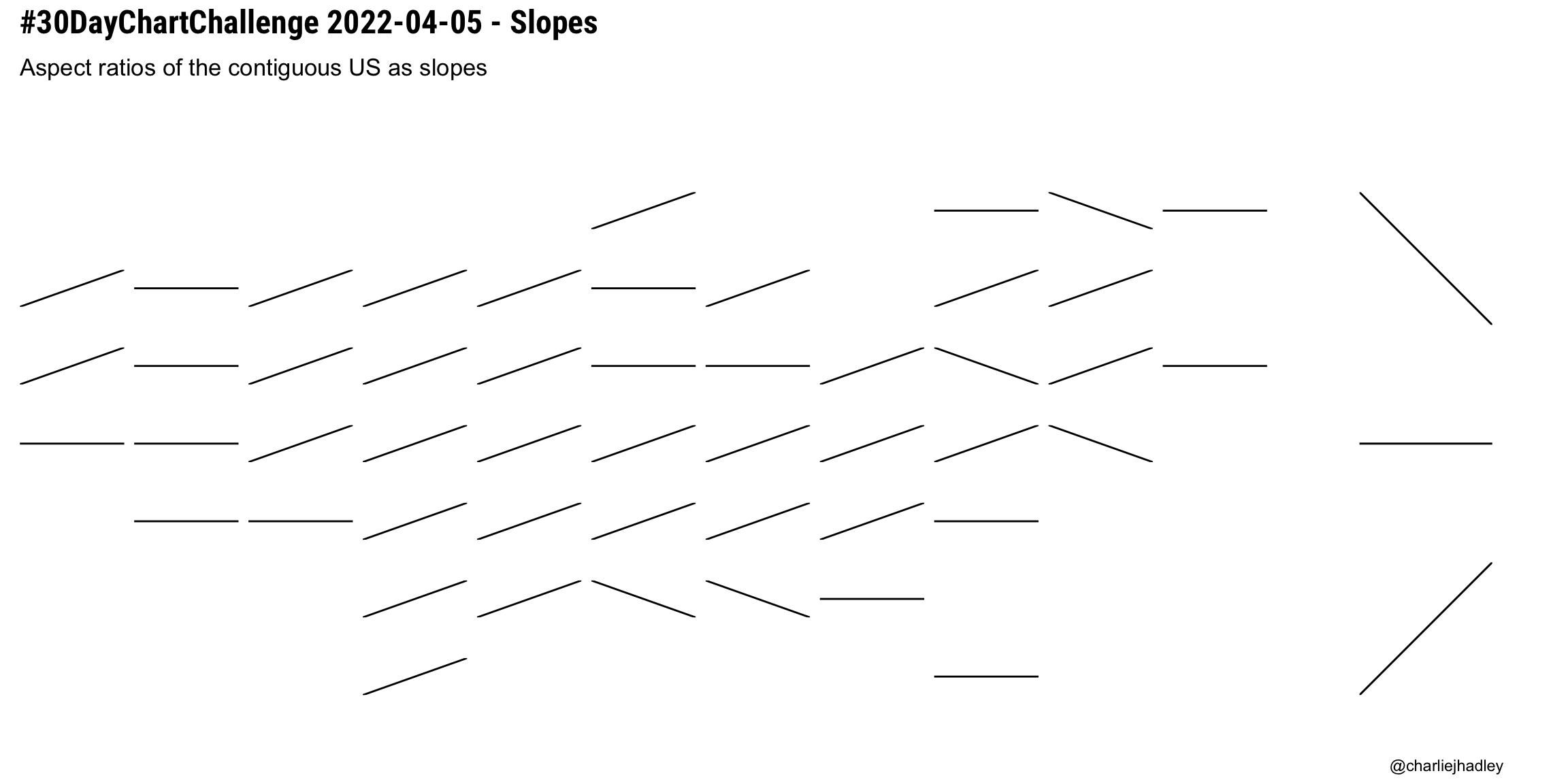

Combined chart

(gg_us_slopes_geo_faceted + gg_legend_slopes) +
  plot_layout(widths = c(8, 1)) +
  plot_annotation(
    title    = "#30DayChartChallenge 2022-04-05 - Slopes",
    subtitle = "Aspect ratios of the contiguous US as slopes",
    caption  = "@charliejhadley",
    theme = theme(
      plot.title    = element_text(hjust = 0, size = 18, margin = margin(b = 10),
                                   family = "Roboto Condensed", face = "bold"),
      plot.subtitle = element_text(hjust = 0, size = 13, margin = margin(b = 15))
    )
  )
